LED PENDENT LIGHT-PD-60600



Download Documentation

Overall
Durable aluminum housing allows excellent heat dissipation.
·Corrosion and heat resistance powder coated finished or
satin nickel finished.
·Smooth polycarbonate cover drives charming illumination.
·220V AC~240V AC/60Hz
·Available in 2700-5000K color temperature,
·1High power LED  PF>0.9
·Beam angle: 120D
·Precise optics for maximum efficiency, up to 90lm/W.
·For damp location.
Black finish/White finish/Orange finish
Waterproof: IP55
5-year limited warranty.

Specifications

Model

LED

(Pcs)

Wattage

(W)

Colour

Lumens

(Lm)

Size

(mm)

Beam

Angle(°)

Input

Voltage(V)

Waterpriif

(IP)

Download

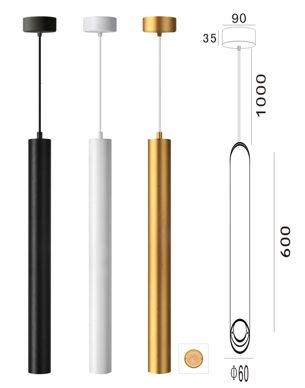

PD-60600-SMSMD20WCCT Tunable1050lm60mm x 600mm UP+DOWN 220V/60Hz IP44
PD-90210-SMSMD20W/30WCCT Tunable1050lm90mm x 210mm UP+DOWN 220V/60Hz IP44

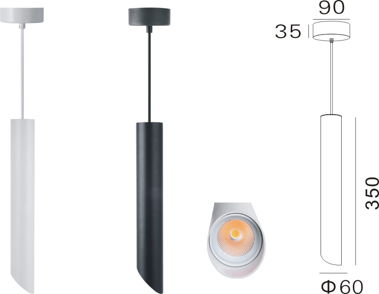

PD-60350-SMSMD20WCCT Tunable1050lm60mm x 350mm UP+DOWN 220V/60Hz IP44
