LED ANTIGLARE LINEAR LIGHT-LT-120



Download Documentation

Overall

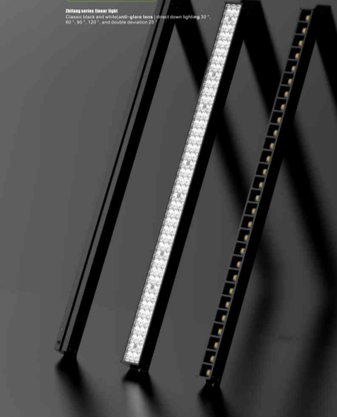

This series of products uses the principle of secondary light distribution, high-end anti-glare lenses, and single0.5W power LED. The case adopts a new environmental friendly material, color coated plate roling process.lens/refilective cup optical design, precise anti-glare, and multiple light type designs, such as direct down lighting30°,60“,90°,120°,and double deviation 25 °
A high-end anti-glare model that can meet high lighting requirements in lighting places and supports customization.
Installation method:
suspension wire suspension rod square pass bridge ceiling mounted.etc varietiesofinstalationaccessories.
Splicing shape:T-shaped,Y-shaped,X-shaped,L-shaped,hexagon-shaped,V-shaped

For Wholesale,retail   Engineer project    Supermarket  Office, school


Specifications

Model

LED

(Pcs)

Wattage

(W)

Colour

Lumens

(Lm)

Size

(mm)

Beam

Angle(°)

Input

Voltage(V)

Waterpriif

(IP)

Download
LT-120SMD40WCCT Tunable150LM/W1200mmx50x60mm UP+DOWN 220-240V IP44
LT-150SMD40WCCT Tunable150LM/W1200mmx70x60mm UP+DOWN 220-240V IP44

Highlight
