LED LINEAR TRUNK LIGHT-ECO-LTK-150-ECO



Download Documentation

Overall

O-Line B economical version economical trunking system has been specifically designed for all types of industrial and warehouse applications where energy savings and beam control are necessities. Available as standard with various optics to suit many industrial and warehouse applications, the O-Line trunking system has been designed around ease
 of installation and maintenance. Honeycomb reflector for reducing glare,UGR<19.

 Widely used in supermarket , exhibition center for accent  lighting
Easy to install, Excellent heat dissipation, High brightness and long life
Uniform light and color , low light decay,

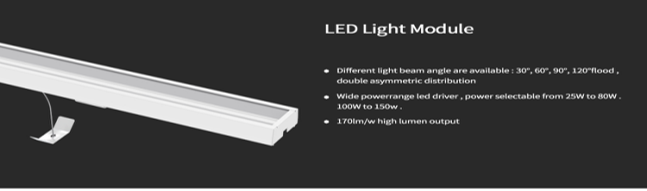

Different light beam angle are available :Wide powerrange led driver , power selectable from 25W to 80W 100W to 150w
170LM/W High lumen output
Lifespan: 50000-L80/100000-L80
UGR <19 for module with optical lens
Suitable for warehouse,supermarket, factory, office


Specifications

Model

LED

(Pcs)

Wattage

(W)

Colour

Lumens

(Lm)

Size

(mm)

Beam

Angle(°)

Input

Voltage(V)

Waterpriif

(IP)

Download
LTK-150-ECOSMD25W-80WCCT Tunable150LM/W1458mm UP+DOWN 220-240V IP44
LT-290-ECOSMD25W-80WCCT Tunable150LM/W2916mm UP+DOWN 220-240V IP44
LT-437-ECOSMD25W-80WCCT Tunable150LM/W4374mm UP+DOWN 220-240V IP44
