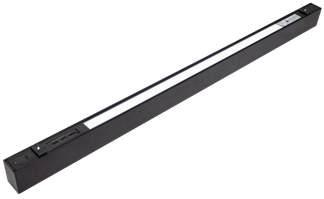

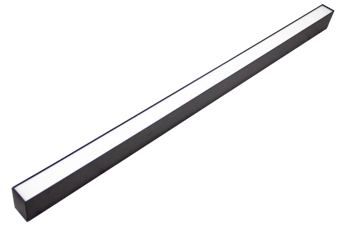

LED BATTERN LIGHT



Download Documentation

Overall

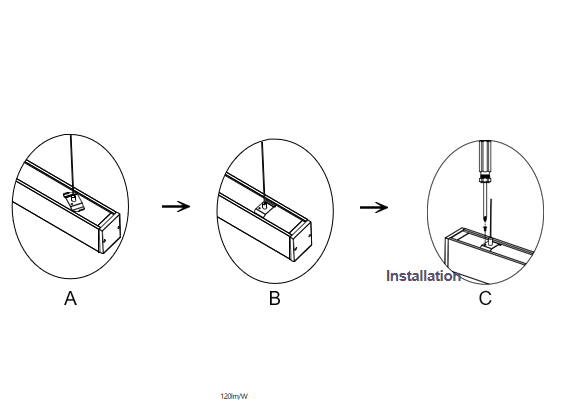

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      A new way of connection for two line with tool free, simply and easily.
Prismatic is rolled for seamless connection.
Up lighting is modular design, DIY by customer.

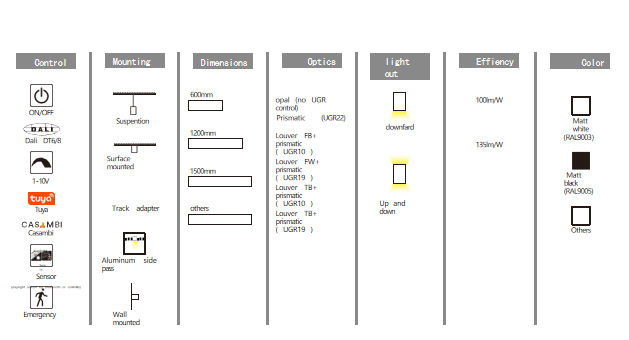

Available for both wire & wireless smart system: Tuya, Casambi, 1-10V, Dali, Sensor, emergency.
Features
Rectangular design with adjustable up and downward light.
“L”/“X”/“T”/“V”/“Y” Shape connectors for seamless linking.
Lighting options: 70% down 30% up; 90% down 10% up; 100% down. Aluminum alloy housing for pefect heat dissipation.
PIR sensor, microwave sensor, photocell & Bluetooth for option.
Pendant (drop ceiling & dywall), conduit, suface, wall, recessed mounting. Build-in EM backup for option.

Specifications

Model

LED

(Pcs)

Wattage

(W)

Colour

Lumens

(Lm)

Size

(mm)

Beam

Angle(°)

Input

Voltage(V)

Waterpriif

(IP)

Download
SMD18W / 18W+ 6WCCT Tunable100/135lm/W578*58*74 UP+DOWN IP44
SMD36W / 36W+ 10WCCT Tunable1138*58*74 UP+DOWN IP44
SMD48W / 48W+ 15WCCT Tunable100/135lm/W1418*58*74 UP+DOWN IP44
SMD25W /25W+ 6WCCT Tunable100/135lm/W578*58*74 UP+DOWN IP44
SMD40W / 40W+ 10WCCT Tunable100/135lm/W1138*58*74 UP+DOWN IP44
SMD48W / 48W+ 15WCCT Tunable100/135lm/W1418*58*74 UP+DOWN IP44
